Simple
Thanks to its mechanical distribution and special attention to ease of use.
Precise
With its aluminium discs allowing to distribute even very small seeds with a great regularity.
Robust
With its noble materials: steel, aluminum, high-tech plastics.
Precision seeders
MS-23 The compact & close row vegetable seeder
Note: There is no video for the MS 23, but the one for the MS 21 will give you a good idea of how the seeder works - only the frame type changes between MS 21 and MS 23.
compacts MS 23 SEEDERS RANGE
Market garden seeders for reduced spacing and/or row spacing
Compact EBRAs
Model shown: MS 23 Expert
An incredibly versatile distribution
Initially designed by EBRA for field crop seeders, the mechanical distribution with inclined disc is simple (just a disc to change from one crop to another), precise (seed to seed at 80% in carrots calibre 1.6 - 1.8) and incredibly versatile: from very small seeds (parsley, carrots...) to beans, large beans and even small bulblets, bare or coated seeds. Thus it is ideal for market gardening, by its precision and its versatility.
Compact Seeders For All Seeds
A compact and space-saving seeder
Le MS 23 a été spécialement pensé pour le semis sur terres finement préparées, lorsque vous disposez d’un espace limité (comme lors des semis sous tunnels), ou que vous voulez semer avec un écart inter-rangs réduit. Et il conserve bien sûr les qualités essentielles des semoirs EBRA : polyvalence, changement de cultures en quelques minutes, simplicité d’utilisation et précision … Chaque élément a une seule roue et un châssis court, ce qui en fait le modèle le plus compact des semoirs attelés EBRA, avec toujours un excellent rapport qualité-prix.
Compact Seeders For All Seeds
For small spaces or inter-rows
The MS 23 is available from 1 to 6 rows on a single beam frame (all the elements are on a single row), and from 2 to 11 rows on a double row frame. In fact, mounted on a double row frame with the elements staggered, it allows a row spacing of 12 cm! More generally, its small size makes it very suitable for small spaces: tunnels, greenhouses, and also allows it to be mounted between the axles of a tool carrier, on a rototiller, a micro-tractor, or a soil cultivation machine (combined seeding).
Compact Seeders For All Seeds
Independent sowing units
Each sowing unit has an inclined aluminium distributor disc (see "Principle") which is driven by the rear wheel. Thus the elements - for multi-row assemblies - are independent of each other, which allows you to sow different crops from one row to another in a single pass. Each element is fixed by a simple flange on the beam frame: this allows to modulate very easily the number of sown rows and the spacing between sowing lines.
Compact Seeders For All Seeds
It follows perfectly the seedbed
The sowing units of the MS 23 are each supported on their own wheel. This way the seed drill follows the unevenness of the ground perfectly. A seeding unit can be removed or moved very easily by unscrewing only two nuts. This makes it possible to change the row width, for example, or to change from bed seeding to ridge seeding.
Compact Seeders For All Seeds
Easy to use
This is a widely recognized strength of EBRA seeders: they are easy to use:
- Instant disc change without tools
- Easy and precise depth adjustment
- Total flexibility of the number of rows, of the space between rows
- Instantaneous drain trap to remove the unused grains after seeding
Discover the MS23 range of seeders
Different levels of equipment are available as standard or as an option depending on the model of seeder, in order to fully meet your needs.
All the options to customize your seeder
Discover the options that will meet each specific need (depending on the nature of the soil, seeding in rows or on an 8 cm wide strip...).
Technical Data MS 23
The information, technical descriptions and photos on this website are given for information purposes only and are not contractual. They may be changed at any time and without notice by the manufacturer.

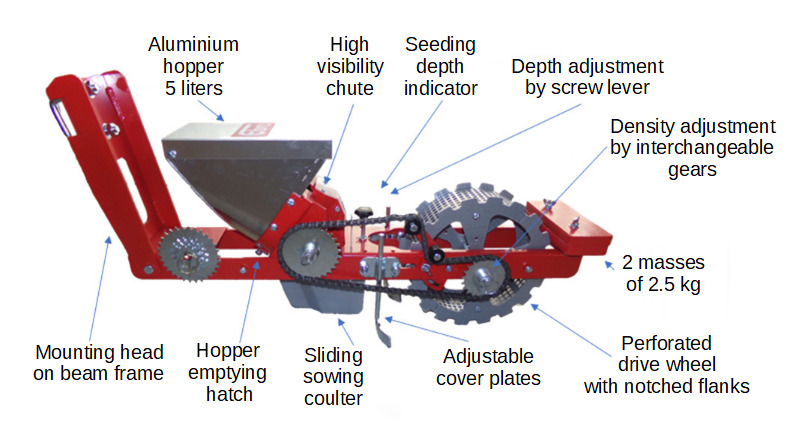

- Precision seed drill multi-grain with mechanical distribution by inclined distributor disc
- From 1 to 8 sowing units, with individual drive, mounted on a beam frame (60 mm square)
- Minimum spacing of sowing units : 23 cm. The maximum spacing depends on the width of the seeder beam and the number of rows.
- Use for a wide range of seeds, from very small (carrots, parsley) to very large (large beans, broad beans...)
- Seeding capacity : approximately 1.000 m2 per hour per row (for a spacing between rows of 30 cm) - ex: 1 seeder with 4 rows spaced of 30 cm sows 1 Ha in approximately 3 h
- Recommended walking speed : 3 to 4,5 Km/h according to the seeds (except very large seeds: 1 Km/h, even less)
- Hopper 5 liters aluminum with instantaneous emptying system
- Sowing blocks with cast iron body, aluminium distributor discs (except some special discs which are made of synthetic material)
- Drive of the disc by bevel gear driven by the front wheel of the sowing unit
- Density adjustment via a set of interchangeable sprockets
- Adjustment of the inter-row space by sliding the sowing units
- Descent of the seeds by gravity in an inclined chimney length 260 mm
- Burying the seeds by profiled steel sowing coulter
- Seeding depth controlled by sliding of the sowing coulter, controlled by screw lever on Dynamic and Expert models
- Covering seeds by removable and adjustable skirts on Dynamic and Expert, by chain on Essential
- Re-seeding of seeds by the rear wheel after covering (smooth steel wheel, rubber wheel in option)
