Simple
Thanks to its mechanical distribution and special attention to ease of use.
Precise
With its aluminium discs allowing to distribute even very small seeds with a great regularity.
Robust
With its noble materials: steel, aluminum, high-tech plastics.
Precision seeders
MS 22 - Vegetable seeder hitched to a power tiller!
Note: There is no video for the MS 22, but the one for the SU 201 will give you a good idea of how the MS 22 works - in fact only the type of frame, the size and shape of the wheels and the size of the sowing coulter distinguish the MS 22 from the SU 201.
MS 22 SEEDERS RANGE
MS 22 precision seed drill for tillers - From 1 to 5 rows
An ideal compromise for medium-sized areas
Model presented: MS 22 Expert
MS 22 range
0
Market gardening seed drill hitched to a power tiller
An incredibly versatile distribution
Initially designed by EBRA for field crop seeders, the mechanical distribution with inclined disc is simple (just one disc to change from one crop to another), precise (seed to seed at 80% in carrots calibre 1.6 - 1.8) and incredibly versatile: from very small seeds (parsley ...) to beans, large beans and even small bulbils Thus it is ideal for market gardening.
MS 22 range
0
Market gardening seed drill hitched to a power tiller
Practical & economical
The MS 22 is designed for attachment behind a power tiller. Each element has only one wheel; the front wheel being "replaced" by the tiller itself. This makes it a particularly economical solution (it is the least expensive of the whole range) and particularly well suited to medium-sized areas. It finds its place between the manual models and the seed drills coupled behind tractors.
MS 22 range
0
Market gardening seed drill hitched to a power tiller
For small spaces
The MS 22 is available in 1 to 5 rows - depending on the size of the tiller to which it is attached - and can be mounted directly on the tiller's clevis or on a simple beam frame, depending on whether you want to position one or several elements. Its small size makes it very suitable for small spaces: tunnels, greenhouses. And the MS 22 has all the essential qualities of the EBRA seed drills: versatility, ultra-fast crop change and excellent simplicity/precision ratio.
MS 22 range
0
Market gardening seed drill hitched to a power tiller
Independent sowing units
Each sowing unit has an inclined aluminium distributor disc (see "Principle" section) which is driven by the unit's wheel. Thus the elements - for multi-row assemblies - are independent of each other: this makes it very easy to modulate the spacing between 2 rows and possibly sow different crops from one row to another in a single pass.
MS 22 range
0
Market gardening seed drill hitched to a power tiller
Easy to use
This is a widely recognized strength of EBRA seeders: they are easy to use:
- Instant disc change without tools
- Density adjustment in just a few minutes and without any tools
- Instantaneous drain trap to remove the unused grains after seeding
- Adjustment of the sowing depth by sliding sowing boot (this model does not have an articulated frame)
Discover the MS22 range of seeders
Different levels of equipment are available as standard or as an option depending on the model of seeder, in order to fully meet your needs.
Diapositive précédente
Diapositive suivante
All the options to customize your seeder
Discover the options that will meet each specific need (depending on the nature of the soil, seeding in rows or on an 8 cm wide strip...).
Designed for demanding professionals
100% French design and manufacturing

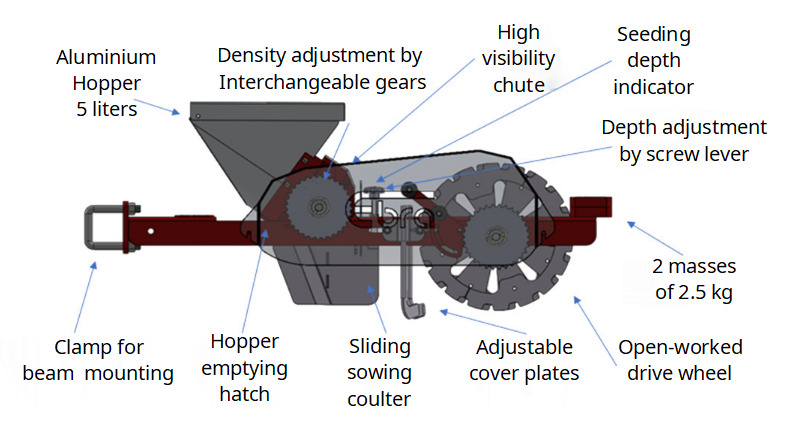

Caractéristiques Techniques MS 22
The information, technical descriptions and photos on this website are given for information purposes only and are not contractual. They may be changed at any time and without notice by the manufacturer.
Pour 1 élément :
- Longueur : 80 cm –
- Largeur : 24 cm –
- Hauteur : 45 cm
- Poids : 15 Kg
- Châssis poutre carré 50 mm avec roues porteuses
- Largeur du semoir : 1.50 m (autres largeurs possibles en option)
- 25 réglages de densité par pignons interchangeables
- Réglage de la profondeur par manette à vis (sur Expert)
- Instantaneous drain trap to remove the unused grains after seeding
- Trémie alu 6 L
- Rasettes de recouvrement réglables et amovibles.
- Botte de semis éclaté pour semis sur bande de 8 cm
- Trémie tôle 9 L
- Plaque d’économie de graines (en option sur Essentiel)
